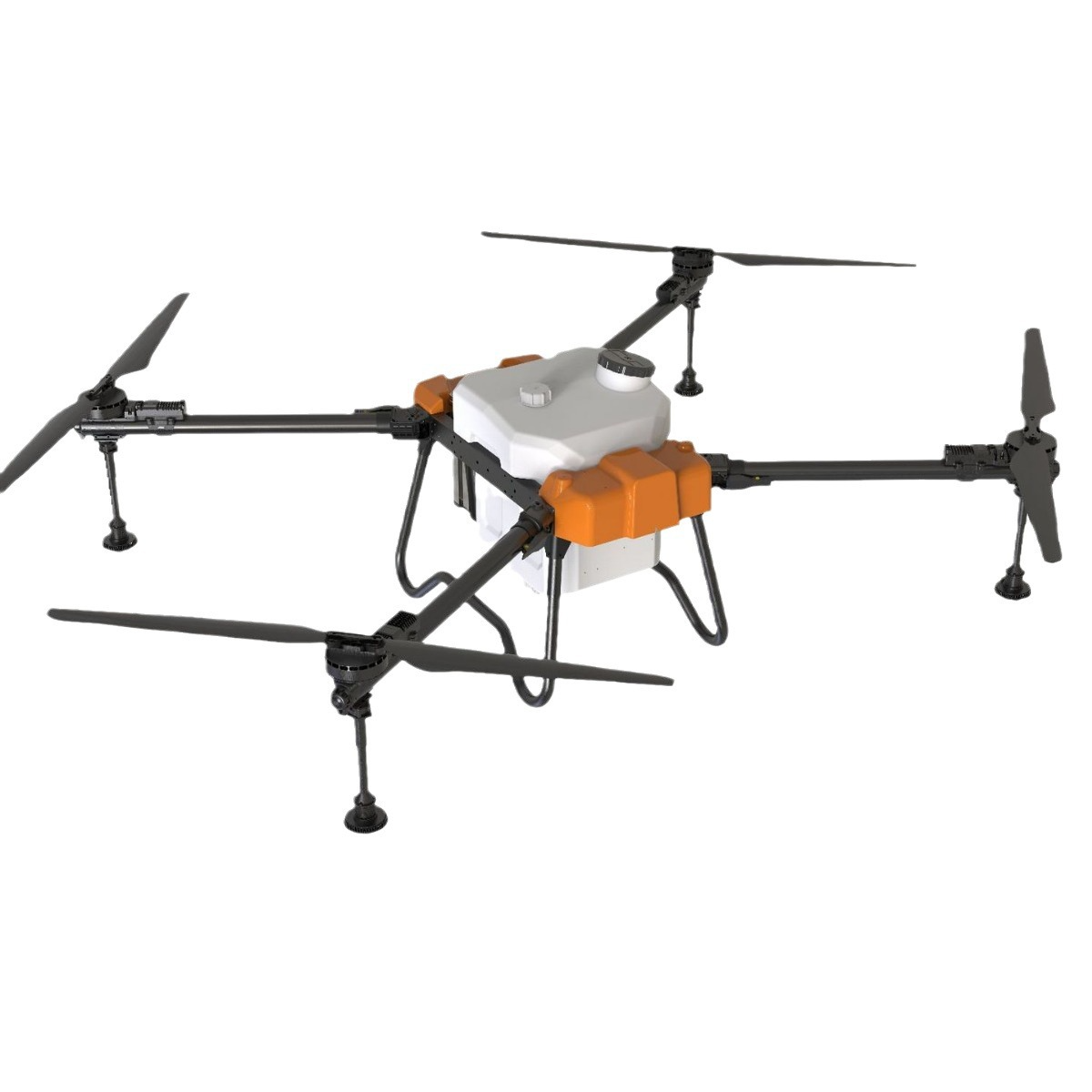

DF-T70 4轴70L载荷105KGS农业植保无人机撒药施肥播种机



DF-T70 70L载荷105KGS农业植保无人机  ￥58,800.00

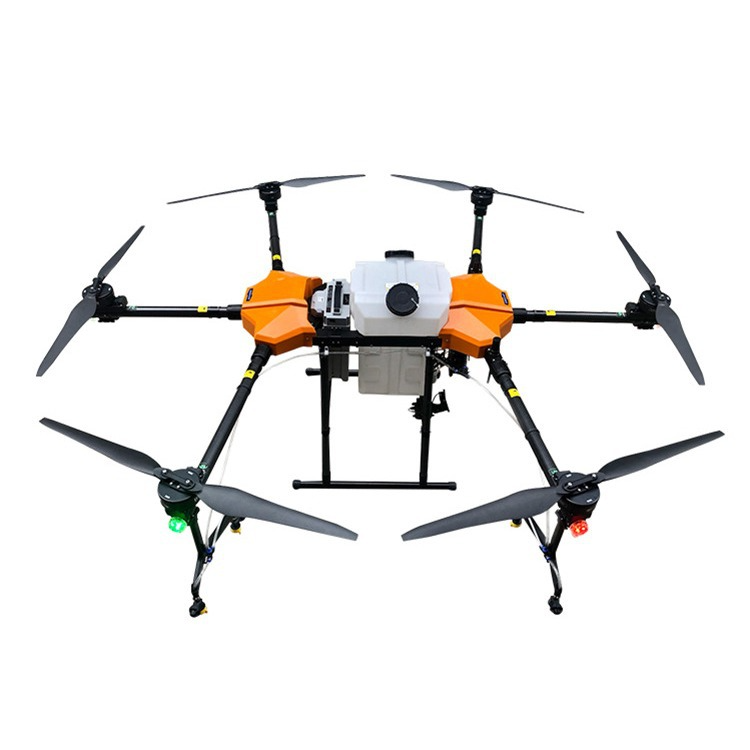

DF-C30 30L载荷92KGS农业植保无人机  ￥47,800.00





DF-T70 4轴70L载荷105KGS农业植保无人机撒药机果园草坪遥控打药机农作物农药喷洒施肥播种机

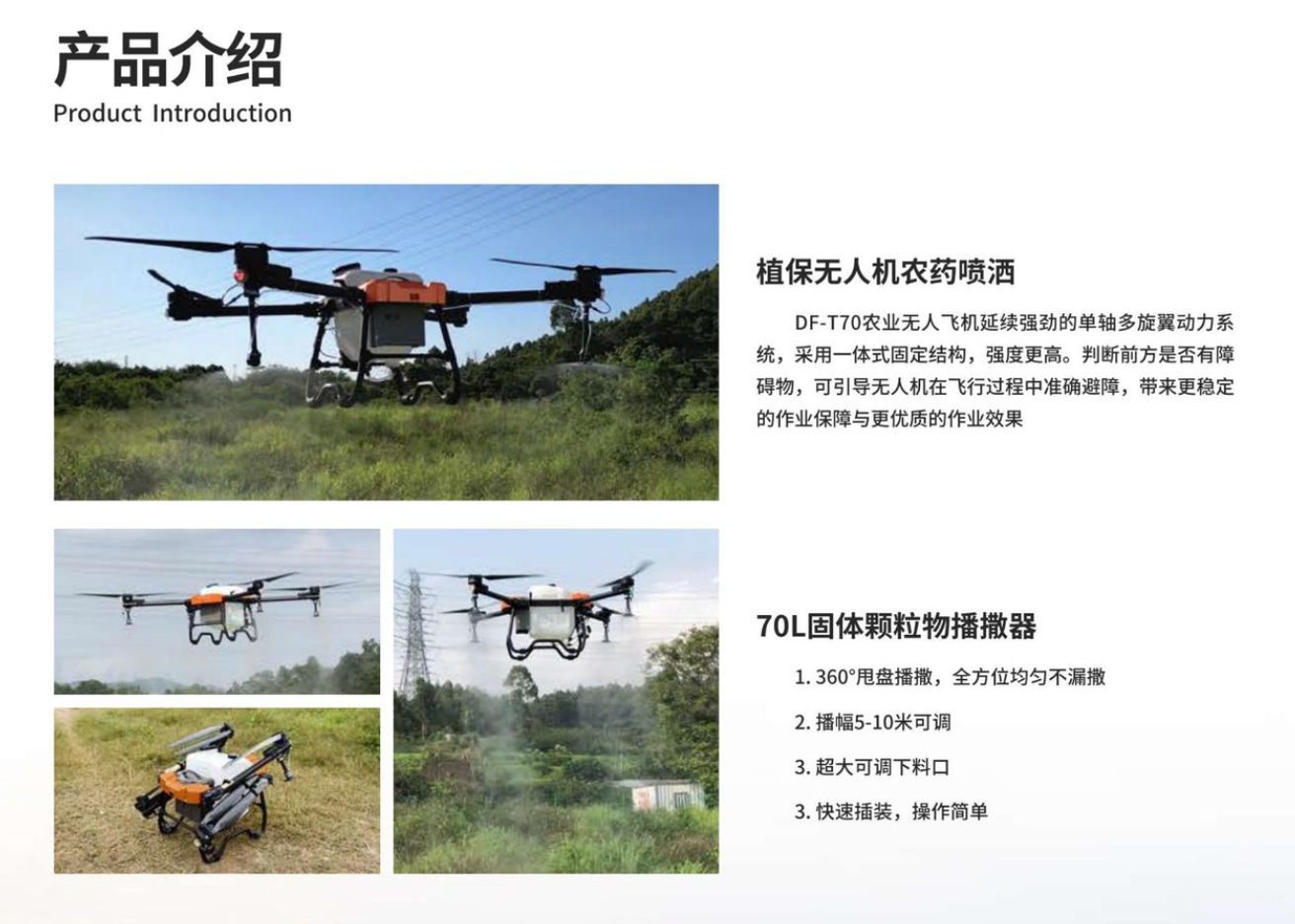

植保无人机农药喷洒
DF-T70农业无人飞机延续强劲的单轴多旋翼动力系统,采用一体式固定结构,强度更高。判断前方是否有障碍物,可引导无人机在飞行过程中准确避障，带来更稳定的作业保障与更优质的作业效果。



70L固体颗粒物播撒器
1.360°甩盘播撒，全方位均匀不漏撒2. 播幅5-10米可调3.超大可调下料口3. 快速插装，操作简单。



Pesticide spraying by agricultural drones
The DF-T70 agricultural unmanned aircraft continues the powerful single-axis multi-rotor power system and adopts an integrated fixed structure, which is of higher strength. Judging whether there are obstacles ahead can guide the unmanned aerial vehicle to accurately avoid obstacles during flight, providing more stable operation guarantees and better operation results



70L solid particulate matter spreader
1.360° Swing seeding, evenly spreading in all directions without any missed areas. \ n2. Adjustable seeding range of 5-10 meters. \ n3. 3. Extra-large adjustable discharge port. Quick insertion and simple operation

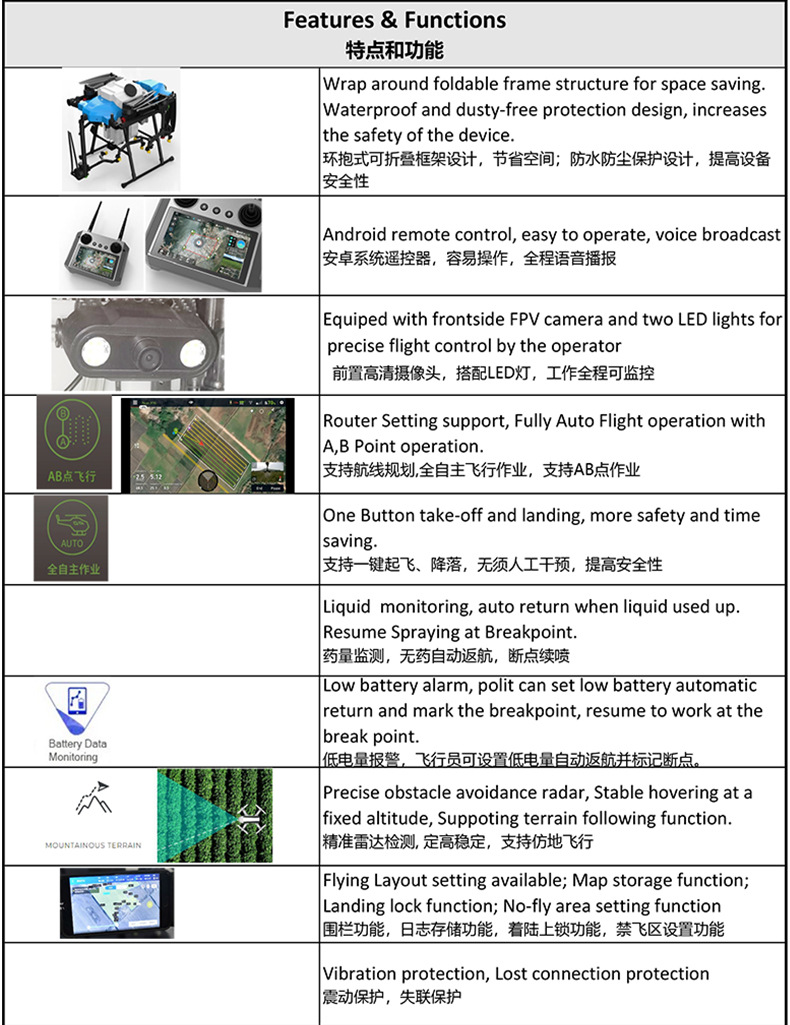

多种定位选择
坡地飞行
全自主作业
智能喷洒
AB点飞行



Multiple positioning options
Slope flight
Fully autonomous operation
Intelligent spraying
Flight at Point AB





DF-T70产品参数Product Parameters

折叠尺寸: 1010*760*780mm

展开尺寸: 1711*1341*700mm

操作方式:全自主/AB点/手动

折叠尺寸:1050×820×860mm

整机重量：26KG(不含电池), 38KG (包括电池:13KG)

药箱容量： 52L

载荷: 52KG/70L

最大起飞重量： 105KG

飞行速度：3-12Meter/S

喷淋系统：离心喷头

水泵流量： 5L

喷头数量:4(离心喷头）

悬停精度:水平: ±0.8m

垂直: ±0.5m

喷洒流量: 8L/min（最大）

飞行时间：空载30-40Min
                     满载: 12-15Min

喷幅（视高度而定)： 6-9m

固体颗粒播撒器: 70L

电池容量: 2组30000mAh

工作电压：68.4V (18S)

作业效率: 1-3 Acrest Min
                    6-18亩/分钟

充电时间：15-20分钟

包装箱: 1100*850*1000mm

总重量: 125KG

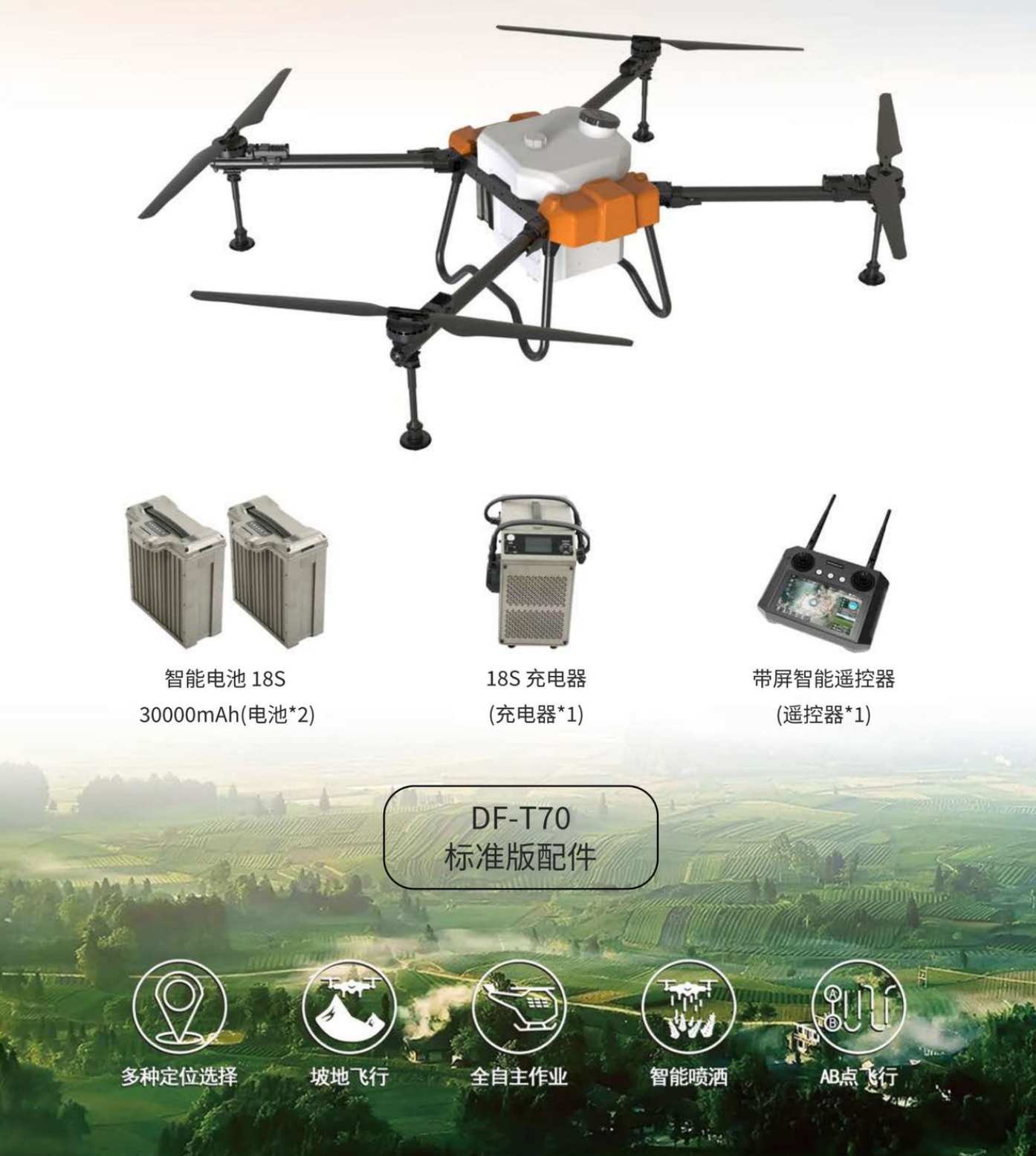

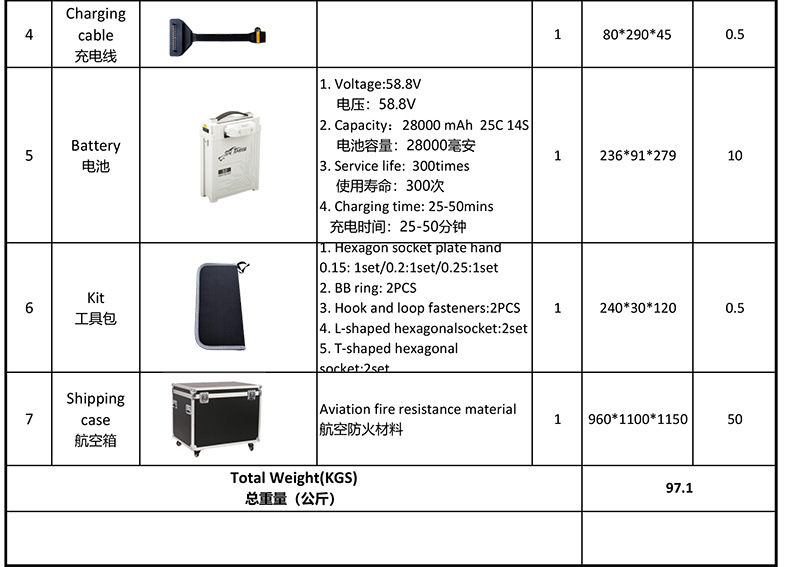

配制：
（裸机1台、智能电池18S30000mah*2组、18S充电器1个、飞行控制系统、

避障系统、仿地雷达、带屏智能遥控器、工具包、航空箱）



DF-T70 Product Parameters

Folding size: 1010*760*780mm

Expanded dimensions: 1711*1341*700mm

Operation mode: Fully autonomous /AB point/manual

Folding dimensions :1050×820×860mm

Overall weight: 26KG(excluding battery), 38KG (including battery :13KG)

The capacity of the medicine box: 52 liters

Load: 52KG/70L

Maximum takeoff weight: 105KG

Flight speed: 3-12 meters per second

Spray system: Centrifugal nozzle

Pump flow rate: 5L

Nozzle quantity :4(Centrifugal nozzles)

Hovering accuracy: Horizontal: ±0.8m

Vertical: ±0.5m

Spray flow rate: 8L/min (maximum)

Flight time: 30-40 minutes without load
Full load: 12-15 minutes

Spray width (depending on height) : 6-9 meters

Solid particle spreader: 70L

Battery capacity: 20,000 mah for 2 groups

Working voltage: 68.4V (18S)

Work efficiency: 1-3 Acrest minutes
6 to 18 mu per minute

Charging time: 15-20 minutes

Packaging box: 1100*850*1000mm

Total weight: 125KG

Preparation:
1 bare machine, 2 sets of 18S30000mah smart batteries, 1 18S charger, flight control system

Obstacle avoidance system, ground-like radar, intelligent remote control with screen, tool kit, aviation case

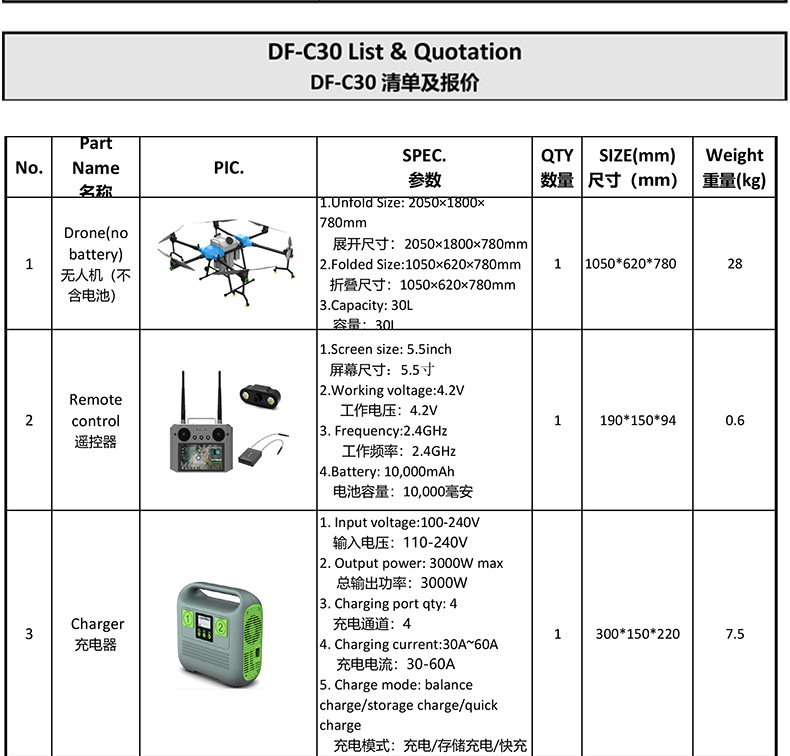

DF-C30
