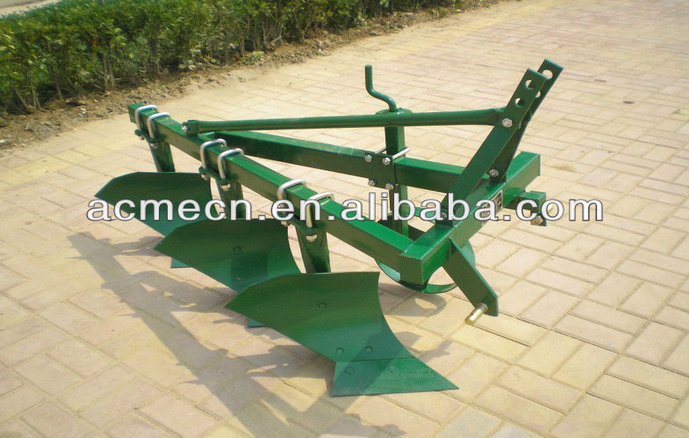

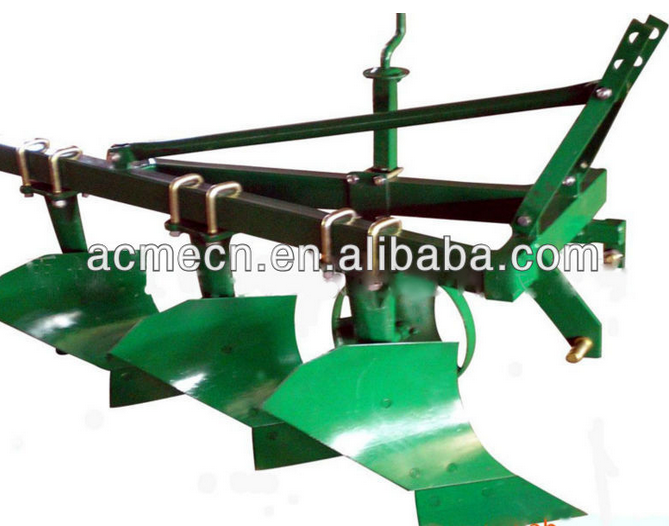

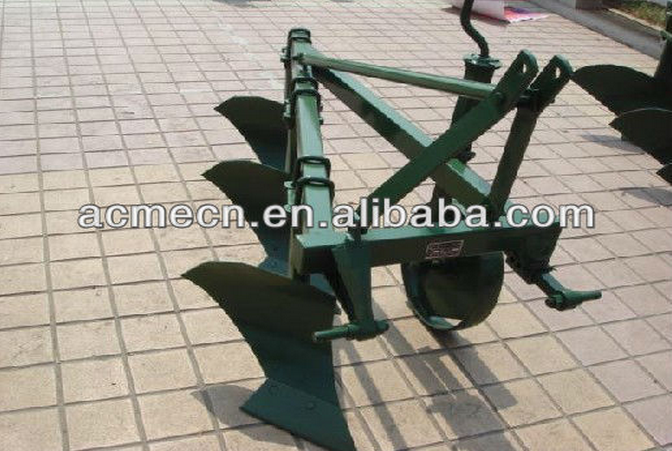

Farming Tractor Mounted Agricultural Furrow Plough
The furrow plough is compact in construction. It is suitable for soil specific resistance:0.6-0.9kg/cm2. It produces the best work,leaving level surface etc.
Characters
1). Special resistant steel bottoms with bar points for toughest ploughing jobs.
2). Bar point bottom ensures longeerlife.
3). Bar point bottom can be extened or reversed and re-used till the last possible length
4). The frame of plough is especially tough that can be destrosied during working in difficult operating conditions or on soils with stones!
Specification
|
Model |
1L-220 |
1L-320 |
1L-420 |
1L-520 |
1L-225 |
1L-325 |
1L-425 |
1L-525 |
|
Nos of share |
2 |
3 |
4 |
5 |
2 |
3 |
4 |
5 |
|
Width of share(mm) |
200 |
200 |
200 |
200 |
250 |
250 |
250 |
250 |
|
Working width (m) |
0.4 |
0.6 |
0.8 |
1 |
0.5 |
0.75 |
1.0 |
1.25 |
|
Working depth(mm) |
200-250 |
|||||||
|
Weight(kg) |
64 |
100 |
135 |
166 |
125 |
210 |
228 |
245 |
|
Matched power(hp) |
15-18 |
25 |
30-40 |
50 |
25 |
40 |
50 |
65 |
|
Linkage |
Standard three-point mounted
|
|||||||
