Hot Sale 1 LF Series Reversible Furrow Plough China Suppliers

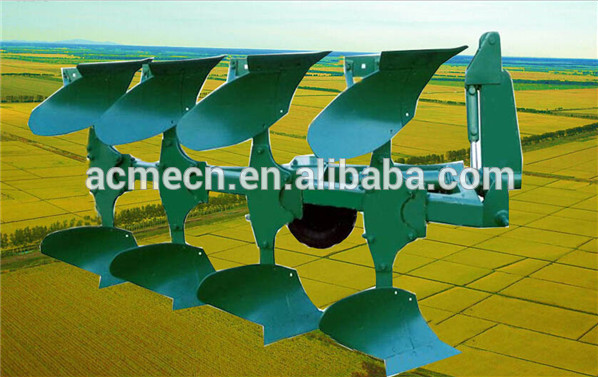

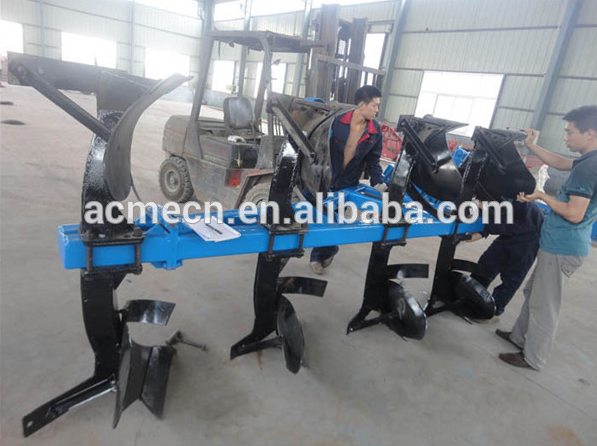

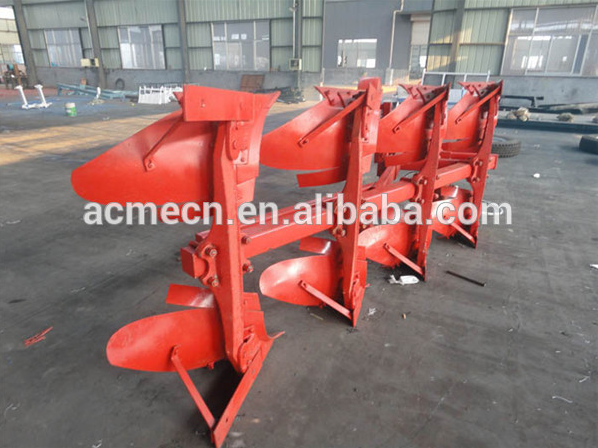

1LF series of share plough is a mounted share plow, suitable for loam, sandy loam soils moreover dry land farming area. it is compact in construction, and versatile in application . After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.It has a compact structure and suitable for working on all various land with the well working performance of the machine, after cultivation, the land surface s leveling, the soil clods well crushed and turnedover and the furrows is small.
Characters
1). Special resistant steel bottoms with bar points for toughest ploughing jobs.
2). Bar point bottom ensures longeerlife.
3). Bar point bottom can be extened or reversed and re-used till the last possible length
4). The frame of plough is especially tough that can be destrosied during working in difficult operating conditions or on soils with stones!
Specification
|
Model |
1LF-330 |
1LF-430 |
1LF-530 |
|
Working width(m) |
0.9 |
1.2 |
1.5 |
|
Working depth(cm) |
220-270 |
||
|
Nos of share |
3 |
4 |
5 |
|
Linkage |
Three-point mounted |
||
|
Productivity(ha/h) |
5.5-7.5 |
7.5-9 |
9-11 |
|
Matched power(hp) |
55-80 |
70-90 |
100-120 |
|
Weight(kg) |
580 |
750 |
950
|
