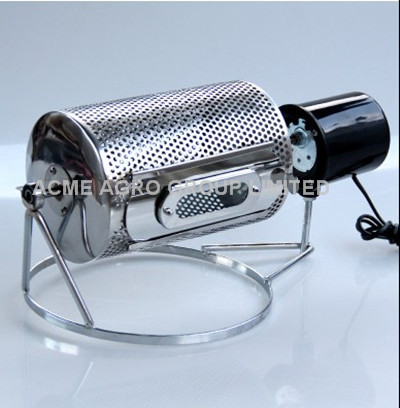

ACME Household Coffee Roaster
1.Installation
Fix the motor and the rack by tightening the nut and then connect the cylinder and the motor(The motor’s height should be the same level of its bearing).
2.Operation Instruction

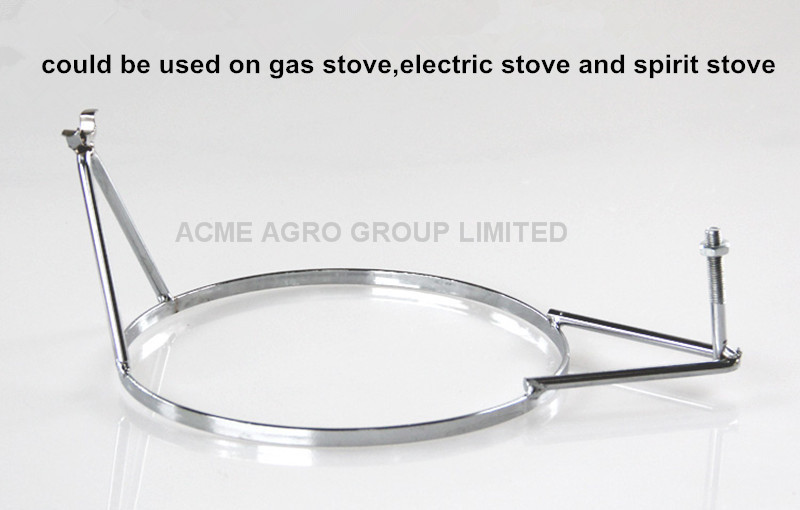

a.It can be used over stove.The rotational speed of the dynamo is 25 r/min to ensure the uniformity of roasting.
b.Open the cylinder’s lid and turn on the rotating switch.Put in the coffee beans and cover the lid after preheating up to 80 centigrade.Turn on the rotating switch again (it must be turned in reverse) and control the roasting depth through the observation window or by your personal likes or dislikes.
c.Do not open the lid by your bare hand(s) and use a towel or something to protect your hand(s) from high temperature after finishing roasting.Put a stainless steel tray beneath the cylinder,start the switch and the goods inside will fall down automatically.Place the coffee beans into a netting basket and mixing can cool swiftly and peel the beans.The machine is used to roast the chestnuts,melon seeds,pine nuts,peanuts and cashew nuts and others needed to roast.
Specification
|
Product Name |
Coffee roaster |
|
Model |
AN |
|
Color |
Stainless steel |
|
Working manner |
drum-type |
|
Power |
40W |
|
Voltage |
220V-240V 50Hz |
|
Certification |
CE |
|
diameter of cylinder |
350px |
|
Weight |
2.6KG |
|

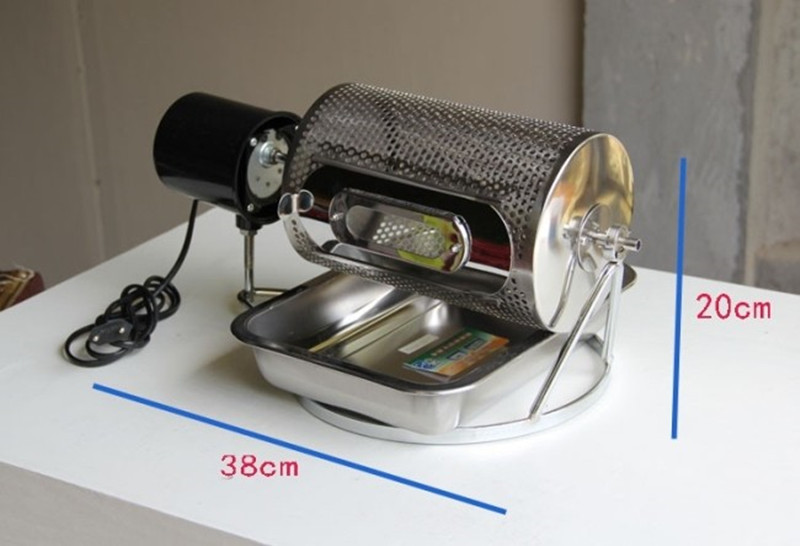

Dimension |
38*22*500px |
|
Inner packing size |
32*23.5*400px |
|
Wide packing size |
34.5*19*575px |
Pictures
